Roller Pin Shaft Gear High Frequency Induction Heating Machine For Hot Quenching

Power Capacity : 140KVA| 230KVA| 340KVA| 450KVA| 610KVA| 930KVA

Price : 30000

Cooling : Water

MOQ : 1

Power Factor : 0.95

Working Frequency : 0.5~10KHZ| 0.5~10KHZ| 0.5~10KHZ| 0.5~8KHZ| 0.5~8KHZ| 0.5~6KHZ

Certification : CE

Working Voltage : 380-480V 3 Phase 50Hz or Customized

Rated Output Power : 100KW| 160KW| 250KW| 350KW| 500KW| 750KW

Contact Now

Roller Pin Shaft Gear High Frequency Induction Heating Machine For Hot Quenching

High Frequency Roller Pin Shaft Gear Induction Heating for Hot Quenching

Technical Specifications

Model		SSF-30	SSF-50	SSF-60	SSF-80	SSF-120	SSF-160
Rated Power Output		30KW	40KW	60KW	80KW	120KW	160KW
Working Frequency		10-30KHz	10-30KHz	10-30KHz	10-30KHz	10-30KHz	8-15KHz
Power Capacity		38KVA	50KVA	75KVA	100KVA	150KVA	200KVA
Input Power		380V/50Hz or 400V 3 phase 4lines
Working Voltage		342V-430V
Input Current		48A	63A	97A	135A	195A	240A
Cooling Water Flow	Power Unit	27L/min	32L/min	40L/min	33L/min	56L/min	56L/min
	Power Unit	(0.1Mpa)	(0.1Mpa)	(0.1Mpa)	(0.1Mpa)	(0.1Mpa)	(0.1Mpa)
	Transformer	26L/min	29L/min	41L/min	32L/min	68L/min	68L/min
	Transformer	(0.1Mpa)	(0.1Mpa)	(0.1Mpa)	(0.1Mpa)	(0.1Mpa)	(0.1Mpa)

Applications

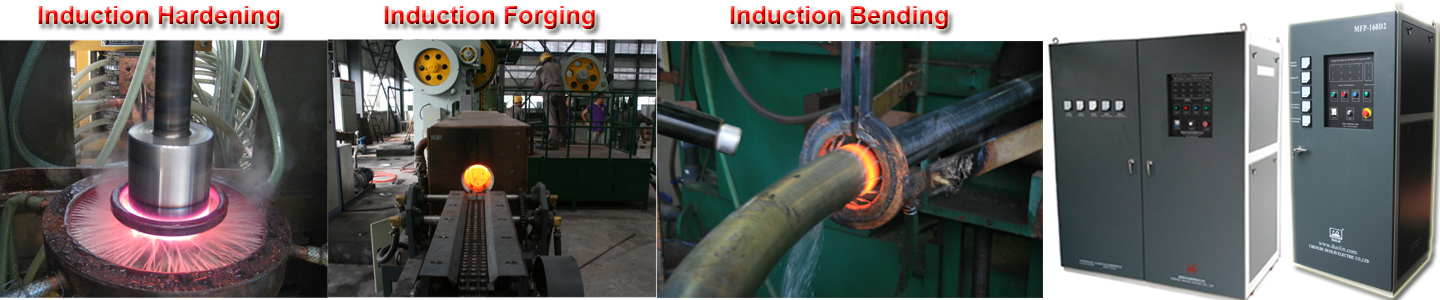

Hardening Induction Heating: The most common form of heat treatment, widely used on shafts, gears, pipes, and other automotive components. Induction power is applied to the surface, heating the material to required depth, then rapidly cooled by water, oil, or other cooling medium.

Roller Pin Shaft Gear High Frequency Induction Heating Machine For Hot Quenching

Key Features

Independent Research, Design, Production and Development by Duolin
Newest IGBT inversion technology with LC series resonance
Different models use same circuit board, reducing spare parts inventory
Passed EMC and Low voltage tests for CE certification
Manufactured under ISO9001-2008 standards
Complete support system including furnace, feeding and delivery system, water cooling system, and infrared thermometer
Special PLC programming for easy integration into production lines and automation
Customized local input power options: 400V+/-10% 50Hz or 600V 60Hz

About Chengdu Duolin Electric Co., Ltd

Duolin Induction aims to provide clients with efficient, cost-effective solutions. We treat this as a green and environmental career. We supply advanced induction heating technology for engineering, manufacturing, and service applications including melting iron ore, heat treating, brazing, hardening, normalizing, annealing, preheating, welding, tube and pipe bending, and other metal-related industries.

With over 20 years of experience, clients from home and abroad choose and highly recommend us. Duolin team provides valuable and reliable solutions for your heating processes, including custom induction coils and frequency equipment selection to maximize your profit.

Why Choose Duolin?

DUOLIN team collaboration ensures you benefit from our expertise
DUOLIN designs the most suitable equipment for your specific workpiece
DUOLIN founded in 1994 with mature, proven technology
DUOLIN continuously develops new solutions and holds two national patents
DUOLIN focuses on quality: "QUALITY IS OUR CULTURE"
DUOLIN equipped with complete production machinery and facilities
